Vatsal Magnetics have developed the unique designed circular, Gyratory screen is useful for solid & liquid, screening. The motor rotations vibrate entire screen assembly mounted on the springs, which gives material desperation, stirring and movement due to rotary multi plane motion given by Heavy duty vibration Motor, Feed material continuously moves in horizontal motion on Vibro Screen surface as per Loop pattern. The Jaykrishna screens give optimum screening, max feed rate and efficiency, as required. The vibratory screens are used to separate materials by particle size, shapes and small amount of oversize material. We are manufacturing the Machine in Single, Double & Triple Deck Type with cover to avoid dusting.
Applications:
The screen is most useful for ceramic, abrasive, sand and glass, ceramic slip, sugar-mixed/screend juice, malt, seed, syrup and sugar-grading, food-biscuit, edible oilCellulose powder, cattle feed, starch slurry, spices, tea,Table salt, paper and pulp, fibre recovery, black liquor, bulk drugs and many other products. The special custom built screen are aslo available.
Salient Features :
- Flange mounted dust-tight 1440 R.P.M. unbalance vibration elec. motor.
- Manufactured in mild steel/S.S.construction.
- Replaceable wire mesh screen frame with quick changing of wire mesh screens.
- Right or Left-hand outlets.
- Dust tight covers.(optional)
- Ball tray decks to reduce screen plug blinding.(optional)
Model
No. |
Screen Size |
PCD |
HP
|
VM-GS-01 |
600 mm |
425 |
0.5 |
VM-GS-02 |
900 mm |
495 |
1 |
VM-GS-03 |
1200 mm |
565 |
1.5 |
VM-GS-04 |
1500 mm |
580 |
3 |
VM-GS-05 |
1800 mm |
595 |
5 |

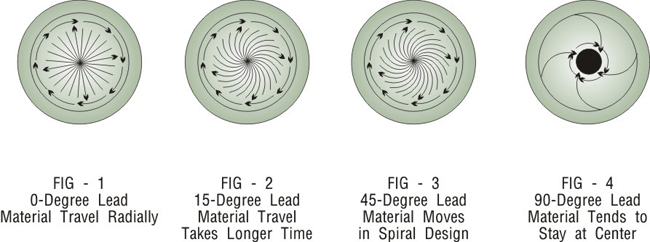

ADJUSTMENT OF TOP & BOTTOM WEIGHTS IN ACCORDANCE WITH THE DIAGRAMS
( EXAMPLES OF SCREEN PATTERNS FOR AVERAGE MATERIALS )
