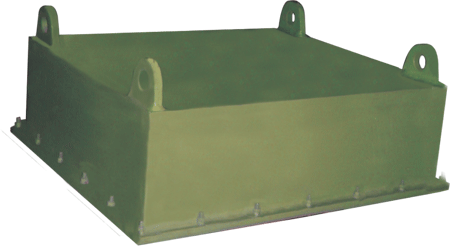

Suspension Magnet

Suspension Magnet

Vatsal Suspension Type Magnets are most useful for products carried by the Belt Conveyors.
Use of Suspension Type Magnets is recommended for products with low contamination. However if the frequency of the impurities is too high, these will make a layer shunting magnetic field. The equipment will require frequent cleaning. For such applications Over Band type Magnetic Separator is recommanded.

Application :
The main applications are for the processing of Bulk products such as Sugar, Coal, Minerals, Cereals, Coffee, Glass Culets etc.

Installation :
VMPL magnets can be installed either at the end of the belt above the head drum (Fig 1), or across the conveyor belt ( Fig. 2 ). In both cases, to avoid disturbances to the magnetic field, a magnetic parts must be placed below the surface of the magnet. The installation shown on figure 1 is preferable for high speeds. Separation is more efficient due to the trajectory of the fact that it is then "fluidised"



suspension Magent 1
