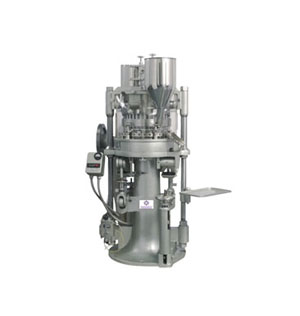

It is a square model/double sided rotary tablet Press/ promising unmatched quality for medium batch Production. Safety/enhanced performance/cleanability and ease of operation are its most significant features. The suitable model can be selected based on the tooling and output requirement from the 27, 35 & 45 station with “D”, “B” & “BB” tooling respectively.
FEATURES :
Robust with high quality Engineering
Turret of SG IRON 500/7 Graded Casting
Medium batch production
Maximum output upto 216000 tablets per hour (for 45 Station)
Tablets of upto 23 mm Diameter for ‘D’ Tooling and 16 mm Diameter for ‘B’ Tooling
Safe / Simple to operate and easy to maintain
Designed as per cGMP standards
SPECIAL FEATURES FOR cGMP MODEL:
Disc Type Friction Clutch
Digital Tablet Counter
Gravity feeder (Feed frame)
Double Sided Lifting Cams
Interlocking at Upper Guard
Variable speed pulley.
Upper punch penetration system
Digital Ampeer meter
OPTIONAL FEATURES :
Rotary Feeders
Shallow Fill Cams
AC Variable Frequency Drive for Main Motor and Force Feeder Motor
Auto-Lubrication System
Bi - layer Tablet Attachment
Die-plate SS 316 L
Standard
cGMP
Technical Specifications: cCMP
Type
SMB4 - D - 27
SMB4 - B - 35
SMB4 - BB - 45
No. of station
27
35
45
Type of tooling
D
B
BB
Output tablets / hour *
50000 to 129600
70000 to 168000
90000 to 216000
Maximum operating pressure (main)
10 Tons
6.5 Tons
6.5 Tons
Maximum tablet diameter
23 mm (25 mm on Demand)
16 mm
11.1 mm
Maximum depth of fill
20 mm
17.5 mm
17.5 mm
Upper punch penetration
3 to 6 mm
Main electric motor
3.70 kW / 5hp, 1440 RPM 415 V, 50 Hz., 3Ph.
Overall dimensions (cm)
109 X 109 X 182 H
Case Dimension (cm)
131 X 137 X 204 H
Net weight
1143 kg
Grass Weight
1400 kg
* Depending upon the characteristic of material and shape & size of tablets.
NOTE : DUE TO CONTINIOUS IMPROVEMENTS IN THE MACHINERIES, SPECIFICATION OF THE MACHINERIES IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE.
Also Available with
Bi - Layer (Two Layer)
attachment
