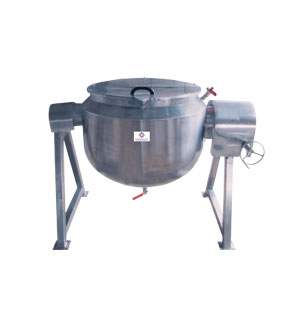

The Paste Kettle is semi-spherical stainless steel jacked bowl (with glass insulation) having two shaft extensions in opposite direction, which are mounted in pedestrail bearing blocks.
Foundation can be done with anchor bolts
On the shaft extension, the perfect manual tilting mechanism provided to collect the product by tilting the bowl.
Water or suitable liquid is heated inside the paste kettle and after getting proper temperature by the liquid, starch or other binders added to prepare the proper paste & the same is used for further Granulation process equipments like Mass Mixer, RMG, FBD ect.
Easy mounting & operation arrangement.
Steam or Electrical heating system can be provided as per end user’s requirement.
Depending upon requirement, Centered Stirrer can be supplied with necessary worm reduction gear box coupled with electric motor with calculated speed. (OPTIONAL).
Top Lid (loose type) provided considering safety.
Inside surface of the Kettle is mirror polished & outside matt/mirror finish.
Suitable operating panel also supplied with the equipment.
Available in 50, 100, and 200 Liter capacity of bowl.
