Fully automatic operation based on PLC control. (optional)
Minimum handling and more hygienic.
Top Mounted telescopic cylinder for auto bag shaking. (optional)
Clamp type bottom mesh for container.
Capacity available from 2.5 kgs. to 300 kgs.
MOC SS 304 / 316 / 316L
cGMP with documentation.
R & D

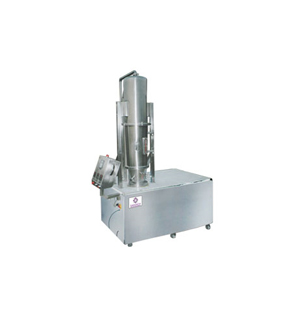

FLUID BED DRYER
Technical Specifications:
MODEL
SMFBD 15
SMFBD 30
SMFBD 60
SMFBD 120
SMFBD 200
SMFBD 300
Container Gross Volume Liters.
46
71
142
280
475
650
Maximum Batch Capacity (0.5bd) Kg.
10 to 15
20 to 30
40 to 60
80 to 120
160 to 200
200 to 300
Blower Motor HP**
5
7.5
10
20
25
30
Air Flow (CFM) ¡¾ 10%
430
706
1060
1880
2590
3235
Steam Consumption (kg /hour)
30
50
80
140
216
250
Electric Heater (KW)
20
20
36
60
N.A.
N.A.
Steam Pressure (kg / cm2)
3.5
Compressed Air Pressure (bar)
6
Drying temp (¢ªC)
35-80
Power Supply
415 V, ¡¾ 10%, 3 Phase, AC
* Depending upon the characteristic of material and shape & size of tablets.
NOTE : DUE TO CONTINUOUS IMPROVEMENTS IN THE MACHINERIES,
SPECIFICATION OF THE MACHINERIES IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE.
