SINGLE SIDED

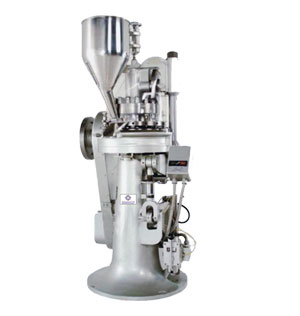

ROTARY TABLETING MACHINE cGMP / Standard
It is a square GMP model/single sided rotary tablet Press/ promising unmatched quality for small batch Production. Safety/enhanced performance/clean ability and ease of operation is its most significant features. The suitable model can be selected based on the tooling and output requirement from the 16, 20 & 12 station with “D”, “D” & “SPECIAL” tooling respectively. The 12 station model is available with “SPECIAL” tooling and tunnel type cam track having maximum tablet diameter of 40mm & maximum depth of fill of 30mm.
SALIENT FEATURES : cGMP
In compliance with cGMP guidelines
Turret of SG IRON 500/7 Graded Casting
Robust with high quality Engineering
Small batch production
Safe/ Simple to operate and easy to maintain
Higher Turret RPM upto 42
Main Moter AC Variable Frequency Drive (optional)
Force Feeder (optional)
Aluminum covers for Turret teeth
SALIENT FEATURES : Standard
Hand wheel provided
Turret of SG IRON 500/7 Graded Casting
Main Operating Pressure up to 10 Tons (For 12 Station - Up to 12 Tons)
Sturdy and easy fit Feed Frame (Gravity Feeder) of Gun Metal
Central oil lubrication system with manual hand pump
Cam tracks and pressure rolls made out of alloy steel for maximum wear resistance and long life
Worm is made of Phosphor Bronze
Ease of operation and maintenance
Maximum 30 RPM of Turret
Variable speed pulley drive (For 12 Station Fixed Pulley with Two different speeds)
